Как решить ошибка lededit 2021
Learn It Step By Step
Since , Adobe flash player discontinued due to security risks and other reasons .There will be no Adobe flash player update in the future . This cause lot of software that use flash components to stop working in new operating systems such as Windows 10 . Adobe asked people to remove Flash player from their computers . With the latest windows 10 update flash player will be removed automatically. This is why some software which worked before but no longer doesn’t work in windows 10 and later versions .
LEDEdit software also uses these flash player and it’s libraries . Since , there is no flash player in windows 10 versions . This cause the LEDEdit to give an error «Class not registered» . This error can appear even if you tried to manually install old flash player in your system. However , The developers of the LEDEdit software managed to fix this error . Here is how to fix the «Class not registered» error.However If you wants to keep using the older version of LEDEdit checkout this tutorial to learn how to create a virual XP to run LEDEdit .
How to fix class not registered error
• Download LEDEdit latest version from Here and install it (Follow the instructions given in that article).
 |
| Update LEDEdit 6.8 to 7.3 |
• In the start up of the software click on the right side button to update the software to LEDEdit 7.3 or later version.
 |
| LEDEdit Updater window |
• Wait until the update process to be completed .
 |
| LEDEdit updater message |
• Once completed you will see a pop-up window . Click on «Yes» button (This will restart the LEDEdit software).
• Now you have a working LEDEdit software . Happy Pixel LED programming ! .
Other LED Edit Tutorials
6 comments:
HI My controller is t-1000s and led is ws2811 but for this version its not working . only work lededit 2014 with windows8. how to fix this . work lededit 2021 in windows 10?
May 23, 2021 at 8:59 PM Cecy Serna said.
Hola, seguí todos los pasos y no me funcionó, espero me puedan ayudar
May 29, 2021 at 11:18 AM Cecy Serna said.
Hola, seguí todos los pasos, pero no me funcionó. Espero me puedan ayudsar
That is may due to windows updates.If your windows version is up to date this may not work ..
May 29, 2021 at 1:14 PM Thanh said.
Led edit version 2018 folding Class failed to register, can you guide me how to fix it. I tried on win10 x64 and win7 32 bit, installed .NET 3.5 or 4.5 but still same error please
Unfortunately , Some updates to windows 10 OS causing this problem again . please try it on a non update or fresh windows 10.
Fix LED Edit Class not registered error in windows 10
Reasons for class not registered error and Fix LED Edit:
Since, Adobe flash player discontinued due to security risks and other reasons. There will be no Adobe flash player update in the future. This cause lot of software that use flash components to stop working in new operating systems such as Windows 10. Adobe asked people to remove Flash player from their computers. With the latest windows 10 update flash player will be removed automatically. This is why some software which worked before but no longer doesn’t work in windows 10 and later versions.
LED Edit software also uses these flash player and it’s libraries. Since, there is no flash player in windows 10 versions. This cause the LED Edit to give an error “Class not registered”. This error can appear even if you tried to manually install old flash player in your system. However, the developers of the LED Edit software managed to fix this error. Here is how to fix the “Class not registered” error.
How to fix class not registered error:
Download LED Edit latest version from Here and install it (Follow the instructions given in that article).
In the start up of the software click on the right side button to update the software to LED Edit 7.3 or later version.
Wait until the update process to be completed.
Once completed you will see a pop-up window. Click on “Yes” button (This will restart the LED Edit software).
Now you have a working LED Edit software. Happy Pixel LED programming with LED Pixel Site!
We LED Pixel ™ effects design for Pixel LED, tutorial the programs used for pixel led, led scrolling displays, pixel led controllers. We have been in field since 2017.
Learn It Step By Step
Since , Adobe flash player discontinued due to security risks and other reasons .There will be no Adobe flash player update in the future . This cause lot of software that use flash components to stop working in new operating systems such as Windows 10 . Adobe asked people to remove Flash player from their computers . With the latest windows 10 update flash player will be removed automatically. This is why some software which worked before but no longer doesn’t work in windows 10 and later versions .
LEDEdit software also uses these flash player and it’s libraries . Since , there is no flash player in windows 10 versions . This cause the LEDEdit to give an error «Class not registered» . This error can appear even if you tried to manually install old flash player in your system. However , The developers of the LEDEdit software managed to fix this error . Here is how to fix the «Class not registered» error.However If you wants to keep using the older version of LEDEdit checkout this tutorial to learn how to create a virual XP to run LEDEdit .
How to fix class not registered error
• Download LEDEdit latest version from Here and install it (Follow the instructions given in that article).
|
| Update LEDEdit 6.8 to 7.3 |
• In the start up of the software click on the right side button to update the software to LEDEdit 7.3 or later version.
|
| LEDEdit Updater window |
• Wait until the update process to be completed .
|
| LEDEdit updater message |
• Once completed you will see a pop-up window . Click on «Yes» button (This will restart the LEDEdit software).
• Now you have a working LEDEdit software . Happy Pixel LED programming ! .
Other LED Edit Tutorials
6 comments:
Manjia said.
HI My controller is t-1000s and led is ws2811 but for this version its not working . only work lededit 2014 with windows8. how to fix this . work lededit 2021 in windows 10?
May 23, 2021 at 8:59 PM Cecy Serna said.
Hola, seguí todos los pasos y no me funcionó, espero me puedan ayudar
May 29, 2021 at 11:18 AM Cecy Serna said.
Hola, seguí todos los pasos, pero no me funcionó. Espero me puedan ayudsar
That is may due to windows updates.If your windows version is up to date this may not work ..
May 29, 2021 at 1:14 PM Thanh said.
Led edit version 2018 folding Class failed to register, can you guide me how to fix it. I tried on win10 x64 and win7 32 bit, installed .NET 3.5 or 4.5 but still same error please
Unfortunately , Some updates to windows 10 OS causing this problem again . please try it on a non update or fresh windows 10.
IDDQD + IDKFA

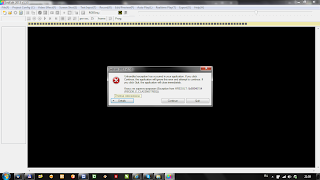

Текст ошибки при попытке запуска программы «LedEdit2013 v1.53:
Unhandled exception has occured in your application. If you click Continue, the application will ignore this and attempt to continue. If you click Quit, the application will close immediately.
Класс не зарегистрирован (Exception from HRESULT: 0x80040154 (REGDB_E_CLASSNOTREG)).
[Отмена невозможна.]
Наблюдается при попытке запуска на Windows 7 x64, Windows 8 x64. При этом на других компьютерах с аналогичными ОС запуск выполняется успешно.
iqLED
В этом топике предлагаю обсудить проблемы возникающие с бюджетным китайским контроллером T-1000S.
контроллер управляет различными смарт пикселями WS2801,WS2811, WS2812B, WS2813, UCS1903 т.д. Софт — LED Edit.
Небольшой off topic
Именно T1000S однажды вдохновил меня доработать все недочеты и выпустить альтернативную стабильную прошивку для китайского контроллера. Контроллер Black Pill V3.0 как альтернатива T1000S и SP107E / ссылка: viewtopic.php?f=4&t=4003
Итак, у меня на столе подопытный образец T1000S 2017 года выпуска.
Вскрытие показало, что в контроллере используется 2 микроконтроллера,
1-й STM32F103C8T6:
ARM®32-bit Cortex®-M3 CPU Core: 72 MHz maximum frequency,1.25 DMIPS/MHz (Dhrystone 2.1)
Memories: 64 or 128 Kbytes of Flash memory; 20 Kbytes of SRAM
2-й — Noname. Именно он формирует импульсы управления для светодиодной ленты, получая данные от STM32F103C8T6.
Для меня это оказалось несколько удивительным, т.е. одного STM32F103C8T6 более достаточно для такого слабенького устройства.
Мой «обратный инжиниринг» еще сильнее удивил меня. Разработчик T-1000S оказывается даже не изучил периферию STM32F103C8T6,
в части управления последовательным интерфейсом SPI. SD карта управляется программным SPI, когда на борту микроконтроллера их несколько аппаратных. Разумеется, использовать программный SPI и одновременно управлять смарт пикселями практически нереально, поэтому разработчик T-1000S «впихивает» дополнительный контроллер, со стертой маркировкой.
Я думаю, именно этим вызван столь малый и нестабильный FPS для полной загрузки контроллера.
Также, несколько разочаровало организация DMX512. По сути, разработчик выводит один и тот же сигнал как на IC порт DO так и на DMX порт (клеммы А и В). Т.е. одновременно нельзя использовать смарт ленту и DMX декодеры, хотя микроконтроллер это спокойно позволяет сделать.
«Раскачать» контроллер более чем на 24 fps мне так и не удалось. Даже если <512 пикселей.
Ну а в целом, для простых мигалок, почему бы и нет.
Это мое старенькое видео, где по «косточкам» произвел все замеры относительно
производительности контроллера T1000S (T-1000S) 2016 года.
